Built for the way dome houses projects actually get used.
The Him(R)-4.0m + 7.0m Restaurant Dome is purpose-built for high-capacity outdoor dining environments such as restaurants, cafés, resorts, and hospitality venues. Its elongated dome structure allows flexible table arrangements while maintaining a sleek, modern architectural appearance. Constructed using UV-stabilized polycarbonate panels and a robust aluminum framework, this dome delivers superior durability, weather resistance, and structural stability. The transparent design maximizes natural light and enhances guest experience by blending indoor comfort with outdoor ambiance. This model is ideal for businesses seeking a scalable, elegant, and weatherproof dining solution.
Designed around real project requirements.
High-capacity dining layout
Comfortable seating for 16–18 guests
UV-stabilized transparent polycarbonate panels
Robust aluminum structural framework
All-weather and wind-resistant construction
Spacious interior for flexible table arrangements
Panoramic visibility of surrounding landscapes
Excellent natural daylight
Hospitality-grade modern design
Configure your product.
Dining Table
Optional
Dining Chair
Optional
Lounge Sofa
Optional
Interior Lighting
Optional
Curtains
Optional
Air Conditioner
Optional
-4.0m%2B7.0m.webp&w=3840&q=75)

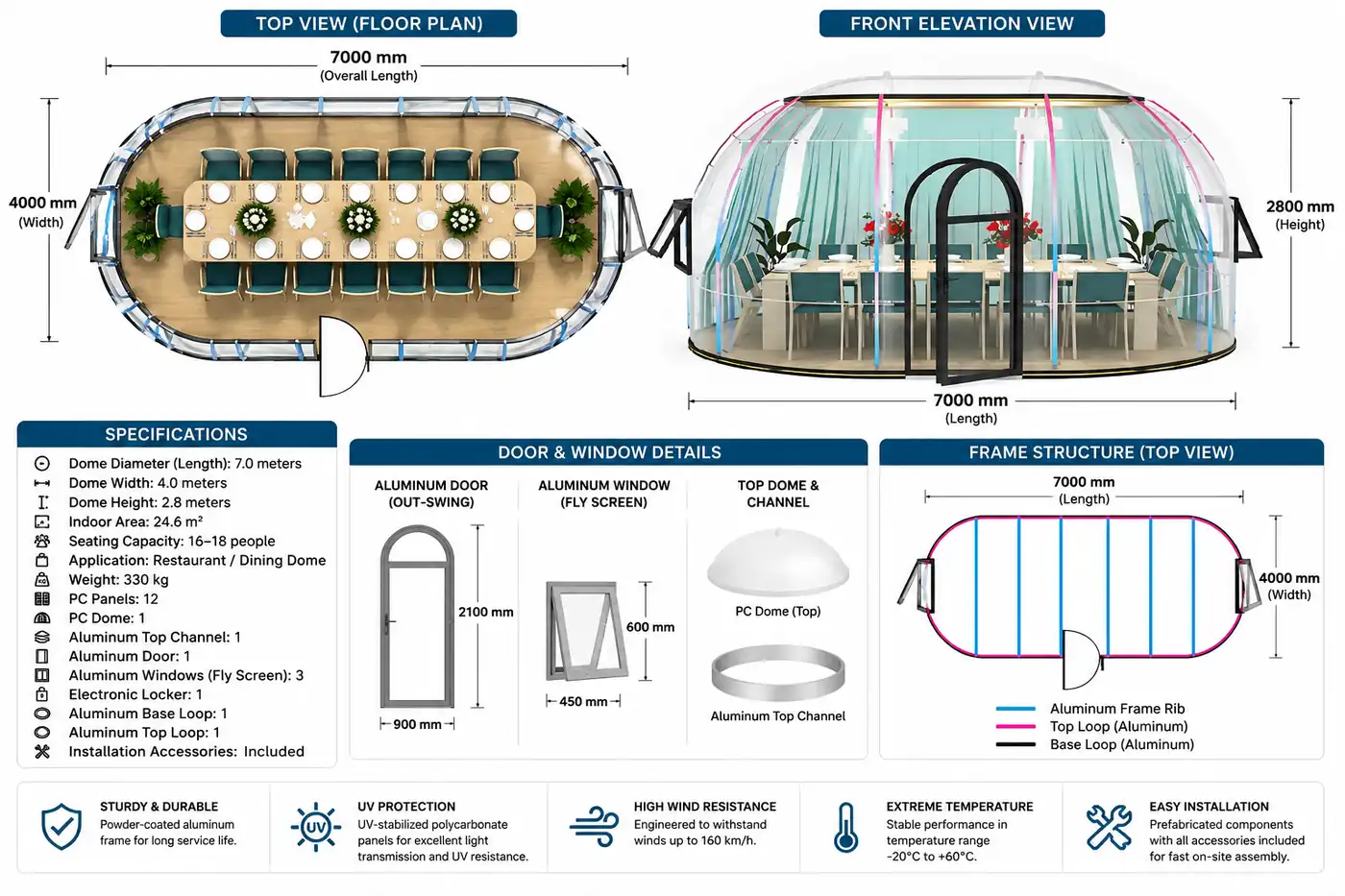

Planning & Layout
Large restaurant dome layout optimized for high-capacity dining.
The Him(R)-4.0m + 7.0m Restaurant Dome provides approximately 24.6 m² of indoor dining space with seating capacity for 16–18 guests. Its elongated configuration allows flexible placement of dining tables, chairs, lighting, and hospitality furniture while maintaining comfortable circulation and panoramic views of the surrounding environment.
Technical information at a glance.
- Dome Configuration
- 4.0 m + 7.0 m
- Dome Height
- 2.8 m
- Indoor Area
- 24.6 m²
- Seating Capacity
- 16–18 people
- Weight
- 330 kg
- PC Panels
- 12
- Panel Material
- UV-stabilized polycarbonate
- Frame Material
- Robust aluminum framework
- Aluminum Top Channel
- 1
- Aluminum Door
- 1
- Aluminum Windows
- 3 — Fly Screen
- Electronic Locker
- 1
- Aluminum Base Loop
- 1
- Aluminum Top Loop
- 1
- Installation Accessories
- Included
- Primary Application
- Restaurant / Dining Dome
- Interior Configuration
- High-capacity dining and hospitality seating
- Weather Resistance
- All-weather and wind resistant
- Thermal Performance
- Enhanced thermal comfort
- Installation
- Modular installation
- Maintenance
- Low maintenance
