Built for the way dome houses projects actually get used.
The Him(R)-4.0m + 20.0m Restaurant Dome is the largest dining configuration in the Him(R) series, purpose-built for luxury restaurants, resorts, waterfront dining, and large hospitality venues. Its extended modular dome structure enables seamless large-group seating while maintaining a striking architectural identity. Engineered with high-strength UV-stabilized polycarbonate panels and a reinforced aluminum framework, this dome provides exceptional durability, weather resistance, and long-term operational reliability. Integrated LED lighting enhances nighttime aesthetics, making it ideal for premium dining environments. This model is ideal for flagship restaurants and hospitality projects seeking maximum seating capacity with a unique and modern design.
Designed around real project requirements.
Ultra-high-capacity dining configuration
Comfortable seating for 40–46 guests
High-transparency UV-stabilized polycarbonate panels
Heavy-duty reinforced aluminum structural framework
Integrated LED lighting system
All-weather and wind-resistant construction
Spacious interior for large-scale dining layouts
Flexible table and seating arrangements
Luxury hospitality-grade architectural presence
Configure your product.
Dining Table
Optional
Dining Chair
Optional
Lounge Sofa
Optional
Interior Lighting
Optional
Curtains
Optional
Air Conditioner
Optional
-4.0m%2B20.0m.webp&w=3840&q=75)

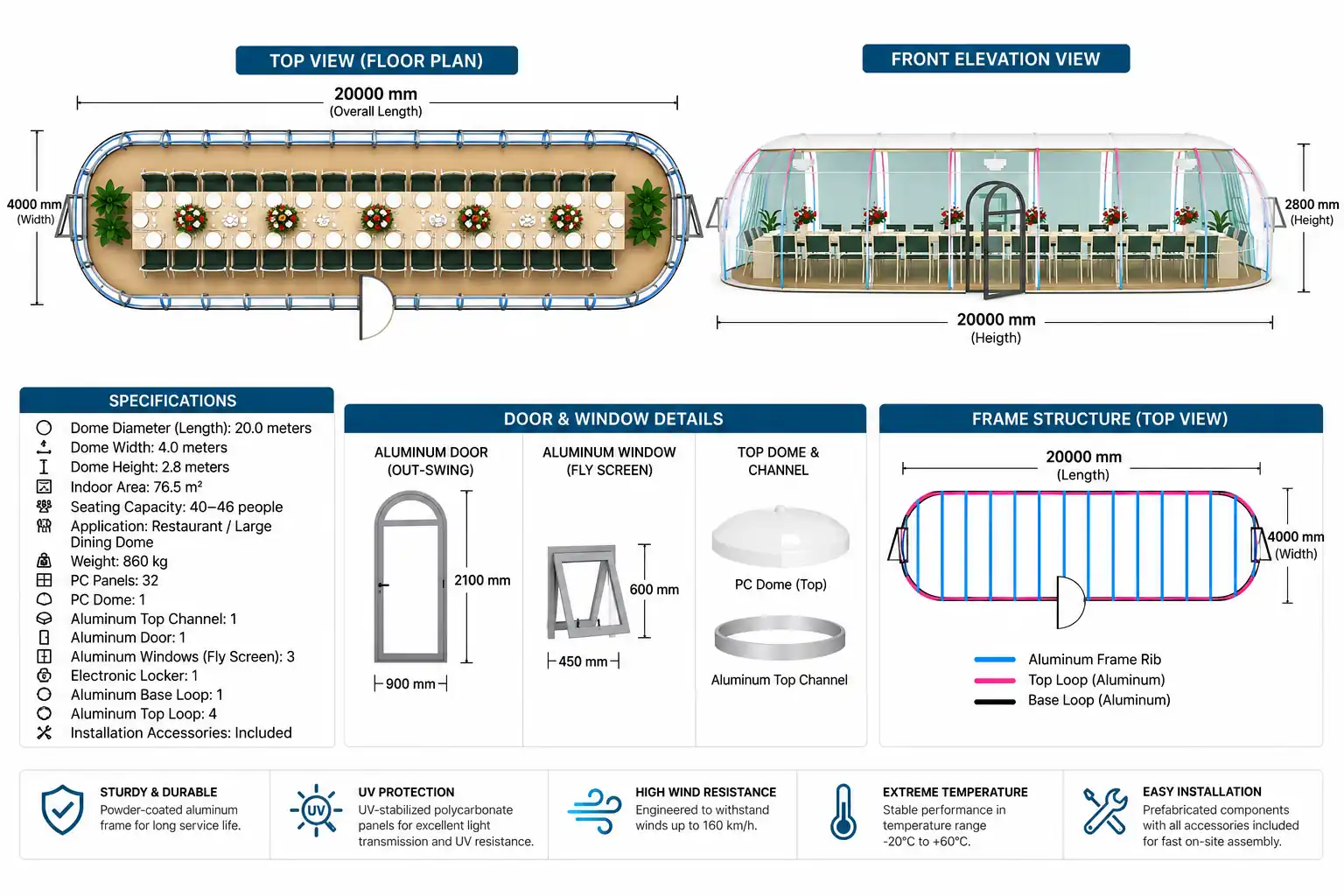

Planning & Layout
Ultra-large restaurant dome layout designed for high-volume dining.
The Him(R)-4.0m + 20.0m Restaurant Dome provides approximately 76.5 m² of indoor dining space with seating capacity for 40–46 guests. Its extended modular configuration provides generous space for multiple dining tables, chairs, lighting, and hospitality furniture while maintaining comfortable circulation and a premium panoramic dining environment.
Technical information at a glance.
- Dome Configuration
- 4.0 m + 20.0 m
- Dome Height
- 2.8 m
- Indoor Area
- 76.5 m²
- Seating Capacity
- 40–46 people
- Weight
- 860 kg
- PC Panels
- 32
- Panel Material
- UV-stabilized polycarbonate
- Frame Material
- Heavy-duty reinforced aluminum
- Aluminum Top Channel
- 1
- Aluminum Door
- 1
- Aluminum Windows
- 3 — Fly Screen
- Electronic Locker
- 1
- Aluminum Base Loop
- 1
- Aluminum Top Loop
- 4
- LED Lighting
- Integrated
- Installation Accessories
- Included
- Primary Application
- Restaurant / Large Dining Dome
- Interior Configuration
- High-capacity restaurant and hospitality dining
- Weather Resistance
- All-weather and wind resistant
- Thermal Performance
- Enhanced thermal comfort
- Installation
- Modular installation
- Maintenance
- Low maintenance
-4.0m+20.0m.webp){kind=link}
