Built for the way folding houses projects actually get used.
The Him Folding House F-20 is a modern expandable prefabricated housing solution designed for flexible accommodation, rapid deployment, and comfortable living. With a 37.17 m² built-up area and a flexible configuration supporting one, two, or four beds, the F-20 can adapt to different hospitality and residential requirements. Its expandable folding structure allows efficient transportation and quick on-site installation, making it suitable for resorts, remote locations, site facilities, and temporary or semi-permanent accommodation. The galvanized steel frame, insulated composite sandwich panels, and flat insulated roofing system provide a durable and weather-resistant modular structure.
Designed around real project requirements.
Expandable prefabricated folding design
Flexible 1 / 2 / 4 bed configuration
Spacious 37.17 m² layout
Galvanized steel structural frame
Insulated composite sandwich panels
Flat insulated roofing system
Concealed electrical wiring
Internal & external lighting system
Quick 1–2 day installation
Relocation-ready modular construction
Configure your product.
Premium Bed
Optional
Dining Table
Optional
Dining Chair
Optional
Lounge Sofa
Optional
Smart TV
Optional
Air Conditioner
Optional
Interior Lighting
Included
Curtains
Optional
Mini Refrigerator
Optional
Wardrobe
Optional

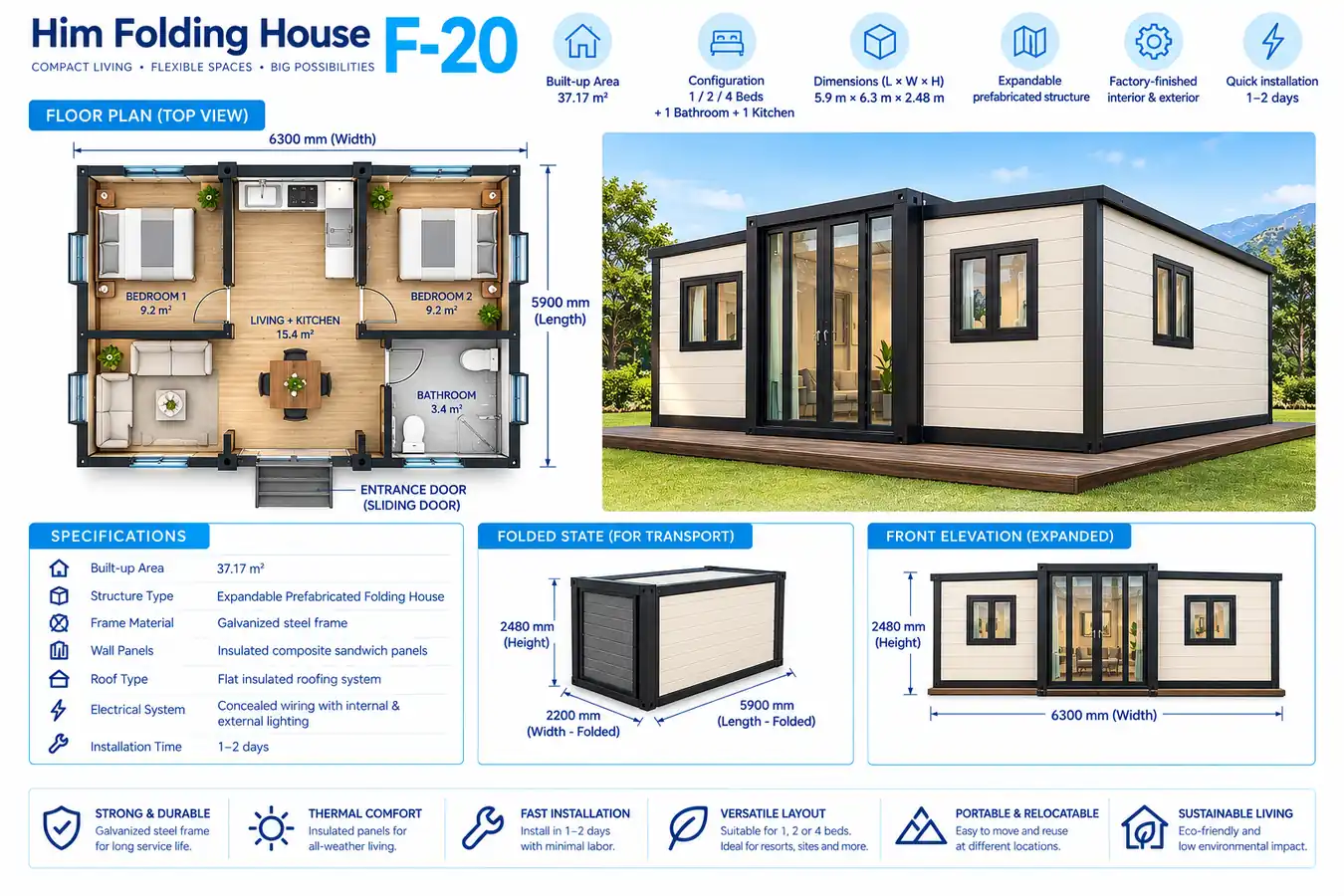

Planning & Layout
Spacious expandable folding house layout with flexible sleeping, kitchen, and bathroom configuration.
The Him Folding House F-20 provides a 37.17 m² expandable modular layout that supports flexible one, two, or four-bed configurations with an integrated bathroom and kitchen. The 5.9m × 6.3m footprint provides additional interior space while the folding prefabricated structure enables rapid installation, transportation, and relocation for a wide range of accommodation requirements.
Technical information at a glance.
- Built-up Area
- 37.17 m²
- Configuration
- 1 / 2 / 4 Beds + 1 Bathroom + 1 Kitchen
- Length
- 5.9 m
- Width
- 6.3 m
- Height
- 2.48 m
- Structure Type
- Expandable Prefabricated Folding House
- Frame Material
- Galvanized steel frame
- Wall Panels
- Insulated composite sandwich panels
- Roof Type
- Flat insulated roofing system
- Electrical System
- Concealed wiring with internal & external lighting
- Installation Time
- 1–2 days
- Construction
- Expandable prefabricated modular construction
- Relocation
- Relocation ready
